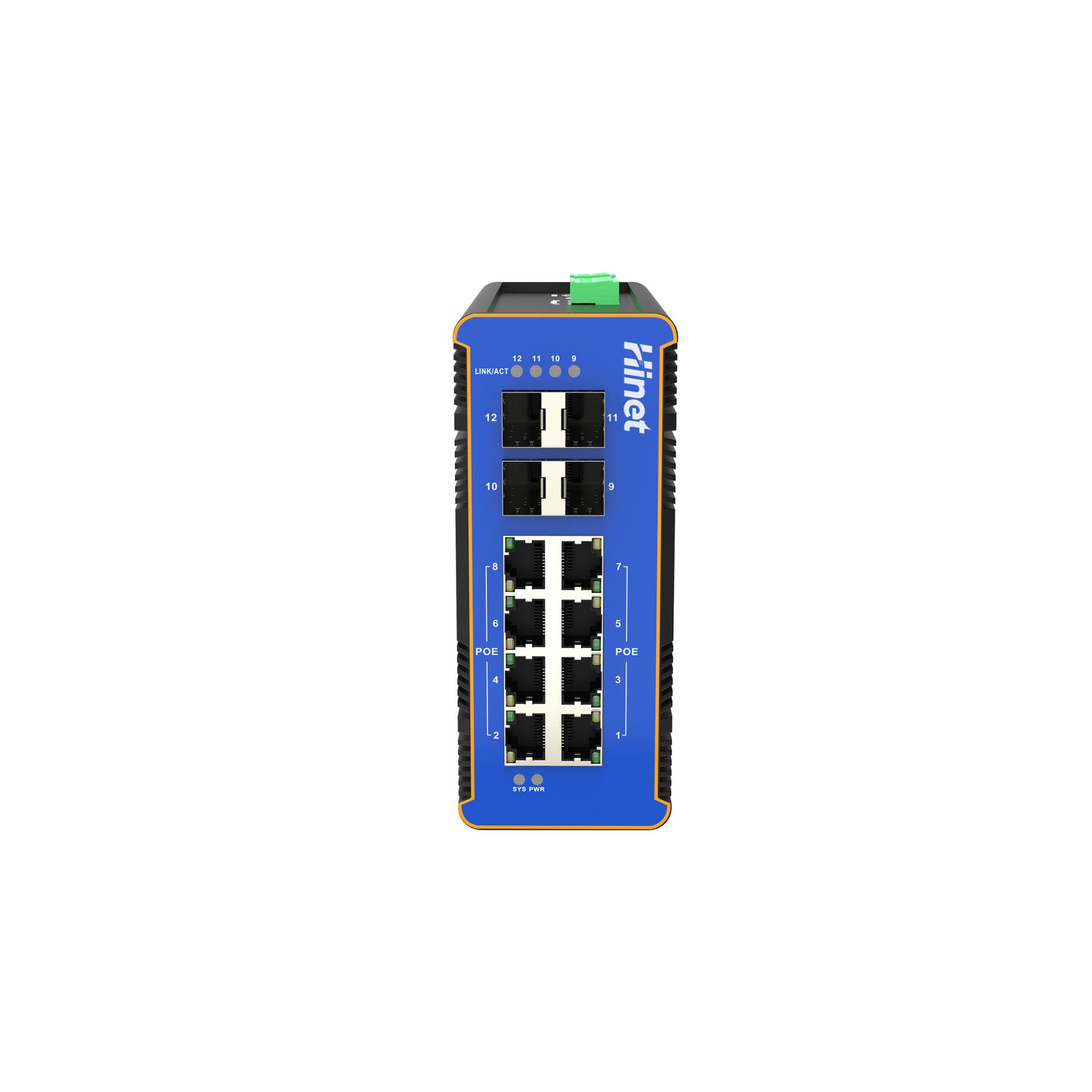

Name: IDS5008F4-U/T 8 Gigabit (60W/90W) PoE Ports + 4 10G SFP+ Slots Layer 3 Managed DIN-Rail PoE Industrial Switch
Brand: Hinet
SKU: IDS5008F4-U/T 8 Gigabit (60W/90W) PoE Ports + 4 10G SFP+ Slots Layer 3 Managed DIN-Rail PoE Industrial Switch

Product Overview

Technical Parameters

Application scenarios

Optional information

File download

Product information

IDS5008F4-U / T is a high-performance L3 managed Ethernet switch with 8 x 10/100/1000TX RJ45 copper ports, of which 4 or 8 IEEE802.3bt Type-3 or Type-4 PoE and 4 x 10G SFP ports, which can meet high-performance requirements and meet the reliability requirements of industrial rolling stock applications. It provides L2/L3 wire-speed and advanced security features for network aggregation deployments. It provides enhanced ring recovery in less than 20 milliseconds in a single ring. To improve flexibility of use, it supports a wide operating temperature of -40~60°C.

Product Features

● IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3ae, IEEE802.3af IEEE802.3at IEEE802.3bt

● Provides 8 10/100/1000 Base-TX ports + 4 10G SFP ports

● Provides 8 60W (Type-3) or 90W (Type-4) PoE ports

● Backplane bandwidth up to 96Gbps

● Supports MLD snooping

● Supports standard IP / extended IP / MAC IP / ARP ACL

● Supports IGMP snooping for multimedia applications

● Supports port mirroring and bandwidth control

● Supports IEEE802.3x flow control

● Supports port-based VLAN / 802.1Q tagged VLAN

● Supports IEEE802.3ad port trunking via LACP

● Supports Spanning Tree Protocol IEEE802.1d / 802.1w / 802.1s

● Supports IEEE 802.1p class of service

● Supports IEEE 802.1x user authentication

● Supports broadcast storm filter

● Supports DHCP client, DHCP relay, DHCP server, DHCP snooping

● Supports static routing, policy routing, RIP, OSPF, VRRP

● Supports system event log

● Supports command-line interface management

● Managed via Web / SNMP / SSH / Telnet / console

● CE Class A, LVD, ROHS2.0

Product Attributes
Network Interface	8 x 10/100/1000 Mbps RJ45 Ethernet ports 4 x 10Gbps SFP Ethernet ports
Management Interface	RJ45 console port
LED Indicators	Power, port speed, port link, PoE
Product Performance
Switching Capacity	96 Gbps
Forwarding Rate	71.4 Mpps
Forwarding Mode	Store and forward
Packet Buffer Memory	12 Mbit
CPU Memory	2G Mbit
Flash Memory	512 Mbit
MAC Address Table	16K
Jumbo Frame	16K
ACL Table	512
VLAN Count	4K
VLAN Interface	32
Routing Host	512
Routing Entries	64
Port Queues	8
PoE Power Budget	240/360/480/720W
Physical Properties
Product Dimensions	147.5 x 142.5 x 70 mm
Product Weight
Operating Temperature	-10 to 60℃
Storage Temperature	-40 to 75℃
Operating Humidity	5 to 95% non-condensing
Voltage Input Range	44~57VDC
Maximum Power Consumption	Including PoE maximum power consumption: 250/370/490 / 730W Switch power consumption: 10W
Certification	FCC, CE Class A, LVD, RoHS
Reliability
PoE
PoE Ports	Ports 1-4 or 1-8
PoE Standard	IEEE802.3af, IEEE802.3at IEEE802.3bt
Maximum PoE Power per Port	60W or 90W
PoE Voltage	Depends on power input
PoE Pin Definition	V- (RJ45 Pin1,2,7,8), V+ (RJ45 Pin 3,4,5,6)
PoE Management	Port-based PoE status view and control, PoE schedule, PD active auto-check
Port Configuration
Enable and Disable	Supports control enable and disable
Auto-Negotiation	Supports forced port mode and speed
Flow Control	Supports IEEE802.3x full duplex Supports half-duplex back pressure
Storm Control	Supports broadcast, multicast and DLF packet rate limiting
Port Mirroring	Supports many-to-one mirroring
Rate Limiting	Supports port input/output rate limiting
Link Aggregation	Supports manual link aggregation Supports LACP Up to 8 maximum aggregation groups, each aggregation group contains up to 8 ports
Aggregation Policy	Source MAC / Destination MAC / Source-Destination MAC Source IP / Destination IP / Source-Destination IP
Port Protection	Each port can be configured as a protected port isolated from each other
MAC Configuration
MAC Address Table Management	Supports
Transmission Mode	Supports IVL transmission mode
Static MAC Address	Supports
MAC Binding	Supports
MAC Address Filter	Supports
MAC Count Limit	Supports limiting the number of MAC addresses learned per port
VLAN Configuration
802.1Q-based VLAN	Supports
MAC-based VLAN	Supports
IP-based VLAN	Supports
Protocol-based VLAN	Supports
Default VLAN	Supports
Private VLAN	Supports
Reliability Protocols
Spanning Tree	Supports STP/RSTP/MSTP
BPDU Guard	Supports
BPDU Filter	Supports
Port Loop Detection	Supports
EAPS Protocol	Supports RFC3619
LLDP Protocol	Supports LLDP and LLDP-MED
UDLD Protocol	Fully compatible with CISCO's UDLD protocol
L3 Routing
Static ARP and Dynamic ARP	Supports
Static Routing	Supports
Policy Routing	Supports
RIP	Supports RIP v1/v2
OSPF	Supports OSPF v2
VRRP	Supports
Multicast
Static Multicast MAC Address	Supports
IGMP SNOOPING	Supports
MVR	Supports
GMRP	Supports
Access Control List (ACL)
Standard IP-based	Supports
Extended IP-based	Supports
MAC IP-based	Supports
MAC ARP-based	Supports
Time-based ACL	Supports
Port Filtering	Supports
QOS
Scheduling Mode	Supports WRR, SP, WFQ
Port-based Priority	Supports
802.1p-based Priority	Supports
DSCP(DiffServ)-based Priority	Supports
DHCP
DHCP Client Service	Supports
DHCP Relay	Supports
DHCP Server	Supports
DHCP option 82	Supports
DHCP Snooping	Supports
Security
Management Security	Supports starting and stopping TELNET, WEB and SNMP services Supports binding TELNET, WEB and SNMP with standard IP ACL Supports controlling the number of TELNET users
CPU Protection	Switch self-security protection, prohibits traffic attacks
IP-MAC Address Binding	Supports static configuration of binding between IP, MAC and port
AAA	Supports 802.1x protocol Supports RADIUS protocol Supports RADIUS server authentication authorization and accounting Supports MAC-based 802.1X authentication. Supports 802.1x default VLAN
DHCP SNOOPING	Supports dynamic ARP binding to prevent ARP spoofing Supports dynamic IP, MAC port binding Supports fixed port connection to DHCP server, prevents private connection to DHCP server
ARP Spoofing Prevention	Supports manually configuring ACL rules based on MAC ARP to prevent ARP spoofing Supports DHCP SNOOPING function, when DHCP obtains IP address, dynamically switches ARP and port binding to prevent ARP spoofing
Management Functions
CLI Management	Supports serial port management Supports TELNET management Supports SSH management
WEB Management	Supports

Switch Model
IDS5008F4-4U	8-port Gigabit Layer 3 Industrial PoE Switch with 4 10G SFP+ Uplink Ports, 4 ports support bt-60W
IDS5008F4-4T	8-port Gigabit Layer 3 Industrial PoE Switch with 4 10G SFP+ Uplink Ports, 4 ports support bt-90W
IDS5008F4-8U	8-port Gigabit Layer 3 Industrial PoE Switch with 4 10G SFP+ Uplink Ports, 8 ports support bt-60W
IDS5008F4-8T	8-port Gigabit Layer 3 Industrial PoE Switch with 4 10G SFP+ Uplink Ports, 8 ports support bt-90W
SFP Modules
GSFP-RJ45	1000M SFP Module, RJ45 Port
GSFP-M-LC-R5	1000M SFP Module, Multimode, 500M, 850nm, LC
GSFP-S-LC-20	1000M SFP Module, Single-mode, 20km, 1310nm, LC
GSFP-S-LC-40	1000M SFP Module, Single-mode, 40km, 1310nm, LC
GSFP-S-LC-80	1000M SFP Module, Single-mode, 80km, 1550nm, LC
XGSFP-RJ45	10G SFP Module, RJ45 Port
XGSFP-M-LC-01	10G SFP Module, Multimode, 500M, 850nm, LC
XGSFP-S-LC-20	10G SFP Module, Single-mode, 20km, 1310nm, LC
XGSFP-S-LC-40	10G SFP Module, Single-mode, 40km, 1310nm, LC
XGSFP-S-LC-80	10G SFP Module, Single-mode, 80km, 1550nm, LC
