You are here: > DIN-rail (SC) PoE Ethernet Media Converter
Product image

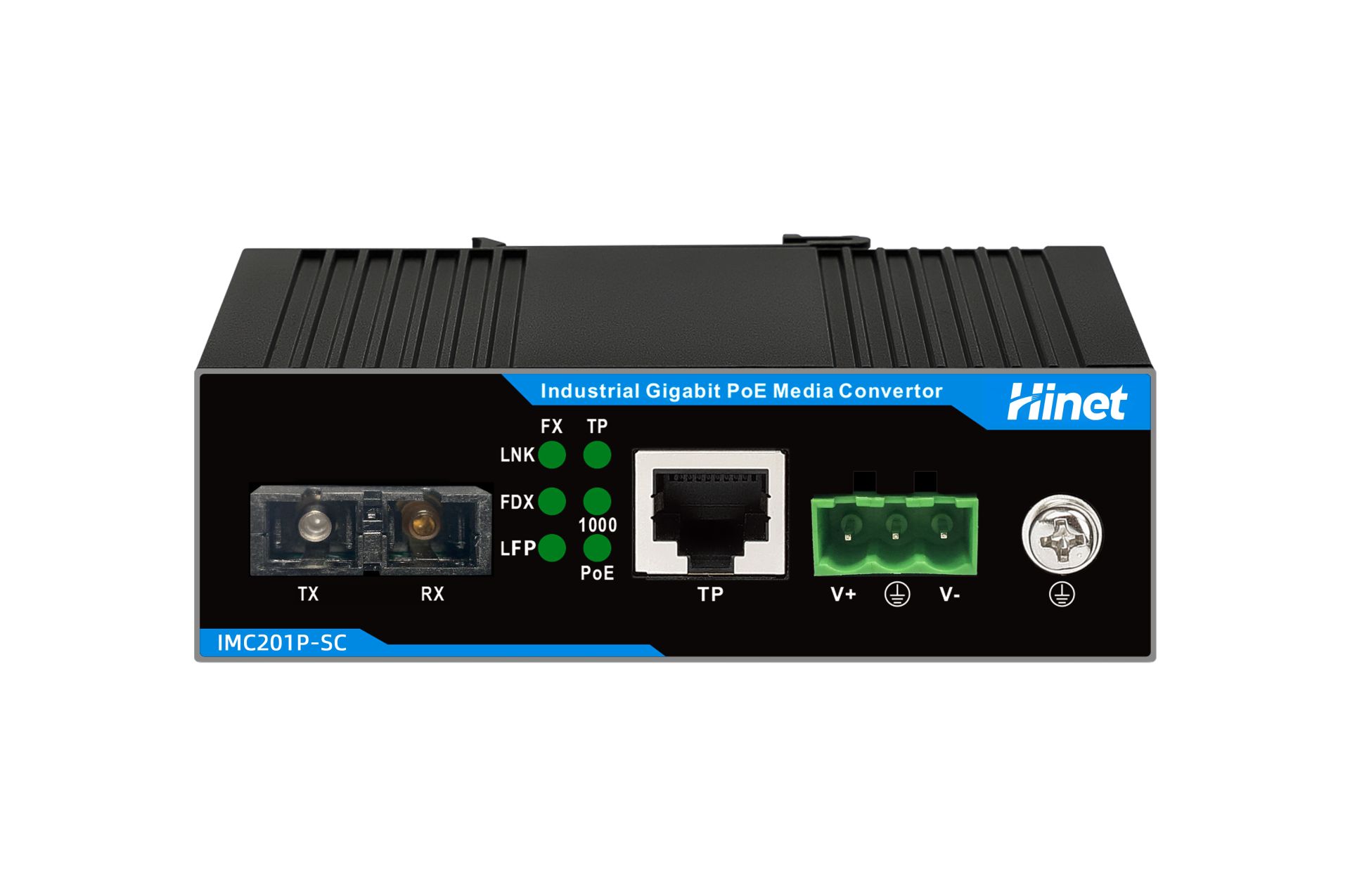

DIN-rail (SC) PoE Ethernet Media Converter

Port type
Electrical port & optical port
Uplink port rate
Downlink port rate
Thousands of combinations
Number of ports
Management type
No management required
POE power supply
802.3at,802.3af
Management hierarchy
Product Overview
Technical Parameters
Application scenarios
Optional information
File download
Product information

 IMC industrial-grade PoE Ethernet Media Converter is an industrial PoE switch that can extend transmission distance. It offers advantages such as convenience, simple maintenance, strong anti-interference performance, powerful performance, and stable operation. The product design complies with Ethernet standards, with stable and reliable performance. This device can be widely used in various broadband data transmission fields such as intelligent transportation, telecommunications, security, finance and securities, customs, maritime, electric power, water conservancy, and oilfields.

•  10/100/1000Mbps auto-adaptive

•  Supports standard PoE

•  Network ports support fully automatic cross-identification

•  Plug and play, easy to use

•  Supports LFP (Link Fault Pass-through)

•  Power input: 44~57VDC, supports reverse connection protection

•  Supports multiple fiber optic interfaces (SC, ST, FC, SFP)

Model

Specifications

IMC201P-M-SC

10M/100M/1000Base-TX to 1000Base-FX Multimode Fiber 850nm(SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 550M

IMC201P-M-ST

10M/100M/1000Base-TX to 1000Base-FX Multimode Fiber 850nm(ST) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 550M

IMC201P-S-SC-20

10M/100M/1000Base-TX to 1000Base-FX Single-mode Fiber 1310nm(SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 20KM

IMC201P-S-SC-60

10M/100M/1000Base-TX to 1000Base-FX Single-mode Fiber 1550nm(SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 60KM

IMC201P-W-SC-20-A

10M/100M/1000Base-TX to 1000Base-FX WDM Fiber TX:1310nm RX:1550 (SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 20KM

IMC201P-W-SC-20-B

10M/100M/1000Base-TX to 1000Base-FX WDM Fiber TX:1550nm RX:1310 (SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 20KM

IMC201P-SFP

10M/100M/1000Base-TX to SFP (Gigabit) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver

IMC101P-M-SC

10M/100MBase-TX to 100Base-FX Multimode Fiber 850nm(SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 550M

IMC101P-M-ST

10M/100M/1000Base-TX to 1000Base-FX Multimode Fiber 850nm(ST) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 550M

IMC101P-S-SC-20

10M/100MBase-TX to 1000Base-FX Single-mode Fiber 1310nm(SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 20KM

IMC101P-S-SC-60

10M/100MBase-TX to 100Base-FX Single-mode Fiber 1550nm(SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 60KM

IMC101P-W-SC-20-A

10M/100MBase-TX to 100Base-FX WDM Fiber TX:1310nm RX:1550 (SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 20KM

IMC101P-W-SC-20-B

10M/100MBase-TX to 100Base-FX WDM Fiber TX:1550nm RX:1310 (SC) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver 20KM

IMC101P-SFP

10M/100MBase-T to SFP (Gigabit) 802.3at POE Industrial DIN-Rail Fiber Optic Transceiver
