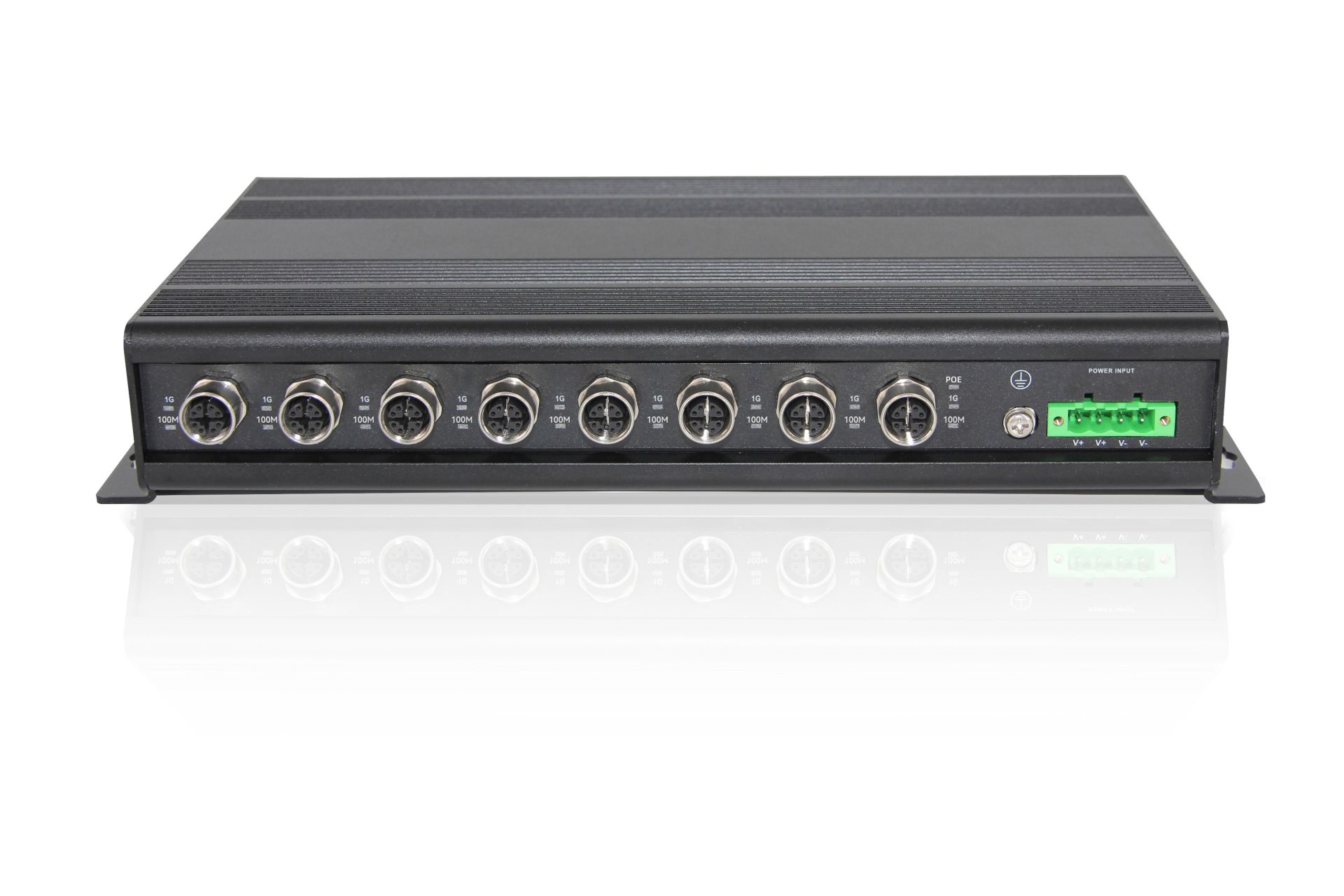

The TNS1608-8P is a high-performance industrial-grade PoE switch independently developed by Shenzhen Haina Industrial Technology Co., Ltd., specifically designed for harsh industrial environments. The device is equipped with 8 10/100/1000TX M12 ports, compatible with IEEE 802.3af/at PoE power supply standards, with a maximum output of 30W per port. Featuring an IP40-rated aluminum housing and an all-M12 interface design, it supports a wide operating temperature range of -40°C to 75°C, delivering exceptional shock resistance and anti-interference performance, making it ideal for high-reliability applications such as rail transit, vehicle systems, and mining.
Core Advantages
Industrial-Grade Rugged Design: The IP40 aluminum housing combined with all-M12 interfaces provides excellent shock resistance and electromagnetic shielding, adapting to high-vibration industrial environments.
Efficient PoE Power Supply: The 8 PoE ports support IEEE 802.3af/at standards, enabling simultaneous data and power transmission to devices such as industrial cameras, wireless APs, and sensors, significantly simplifying cabling structures.
Wide-Temperature Stable Operation: Supports an extreme temperature range of -40°C to 75°C, ensuring continuous and stable performance in harsh conditions such as high heat and extreme cold.
High-Reliability Assurance: Designed for demanding scenarios including locomotives, rail systems, and mine automation, providing uninterrupted network connectivity and device power supply.
Typical Applications
Rail Transit: Train onboard networks, trackside monitoring systems, and onboard video surveillance
Smart Mining: Underground equipment networking, remote monitoring systems, and automated control terminals
Vehicle Systems: IoT terminal access for construction vehicles and special transport vehicles
Industrial Automation: PLC control in vibration environments, industrial sensor networks, and device interconnection
The TNS1608-8P, with its rugged durability, stable reliability, and efficient power supply, provides comprehensive networking and power solutions for industrial IoT and critical infrastructure, driving digital upgrades in industry.
| Product Attributes | |
| Network Interface | 8 Gigabit PoE ports (M12 X-code) |
| LED Indicators | Power, port speed, port link, POE |
| Connector Ports | |
| Copper Ports | M12 8-pole X-code |
| Power Connector | 1+1 dual redundant power Phoenix terminal |
| Copper Cable | |
| 10Base-T | 2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
| 100Base-T | 2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
| 1000Base-T | 4-pair UTP/STP Cat. 5E,6 cable EIA/TIA-568 100-ohm (100m) |
| Product Performance | |
| Switching Capacity | 16 Gbps |
| Backplane Bandwidth | 11.9 Mpps |
| Forwarding Mode | Store and forward |
| Packet Forwarding Buffer | 2Mbit |
| MAC Address Table | 4K |
| Physical Properties | |
| Dimensions | 292 x 147.5 x 50mm |
| Weight | |
| Operating Temperature | -40 to 75℃ |
| Storage Temperature | -40 to 85℃ |
| Operating Humidity | 5 to 95% non-condensing |
| Voltage Input Range | 44-57VDC |
| Maximum Power Consumption | 15W (without PoE load) |
| EMC Safety | FCC, CE, RoHS |
| Reliability (MTBF) | 200,000 hours |
| PoE Function | |
| PoE Ports | Ports 1-8 |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| Maximum PoE Power per Port | 30W |
| PoE Voltage | 52VDC (port auto-negotiation) |
| PoE Definition | V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
| Packaging | |
| M12 Industrial POE Switch | 1pcs |
| User Manual | 1pcs |
| DB9 to RJ45 Cable | 1pcs |
| Rack Mounting Kit | 2pcs |
| Rubber Feet | 4pcs |
Switch Model | |
TNS1608-8P | 8-port EN50155 industrial-grade POE switch (IP40) |
Cables | |
M12-P-5-A-IP67-1 | M12 to power cable, 5-pin A-coded IP67, 1 m |
M12-R-8-A-IP67-1 | M12 to RJ45 cable, 8-pin A-coded IP67, 1 m |
M12-R-4-D-IP67-1 | M12 to RJ45 cable, 4-pin D-coded IP67, 1 m |
M12-M-8-A-IP67-1 | M12 to M12 cable, 8-pin A-coded, IP67, 1 m |
M12-M-4-D-IP67-1 | M12 to M12 cable, 4-pin D-coded, IP67, 1 m |
DH24-F-LC-IP67-1 | DH24 to fiber optic cable, LC-LC, IP67-rated, 1m |
M12 Dust Caps | |
M12-CAP-F-M | Metal cap for M12 female connector |
M12-CAP-M-M | Metal cap for M12 male connector |
M12-CAP-F-P | Plastic cap for M12 female connector |
M12-CAP-M-P | Plastic cap for M12 male connector |
M12 Connectors | |
M12-CON-5-A-IP67-M | DIY metal connector for M12 5-pin A-coded |
M12-CON-4-D-IP67-M | DIY metal connector for M12 5-pin D-coded |
M12-CON-8-A-IP67-M | DIY metal connector for M12 5-pin A-coded |
M12-CON-5-A-IP67-P | DIY plastic connector for M12 5-pin A-coded |
M12-CON-4-D-IP67-P | DIY plastic connector for M12 5-pin D-coded |
M12-CON-8-A-IP67-P | DIY plastic connector for M12 5-pin A-coded |
